HYDROMINE™ LFC_1B Spring Acting Surge Relief Valves
OVERVIEW

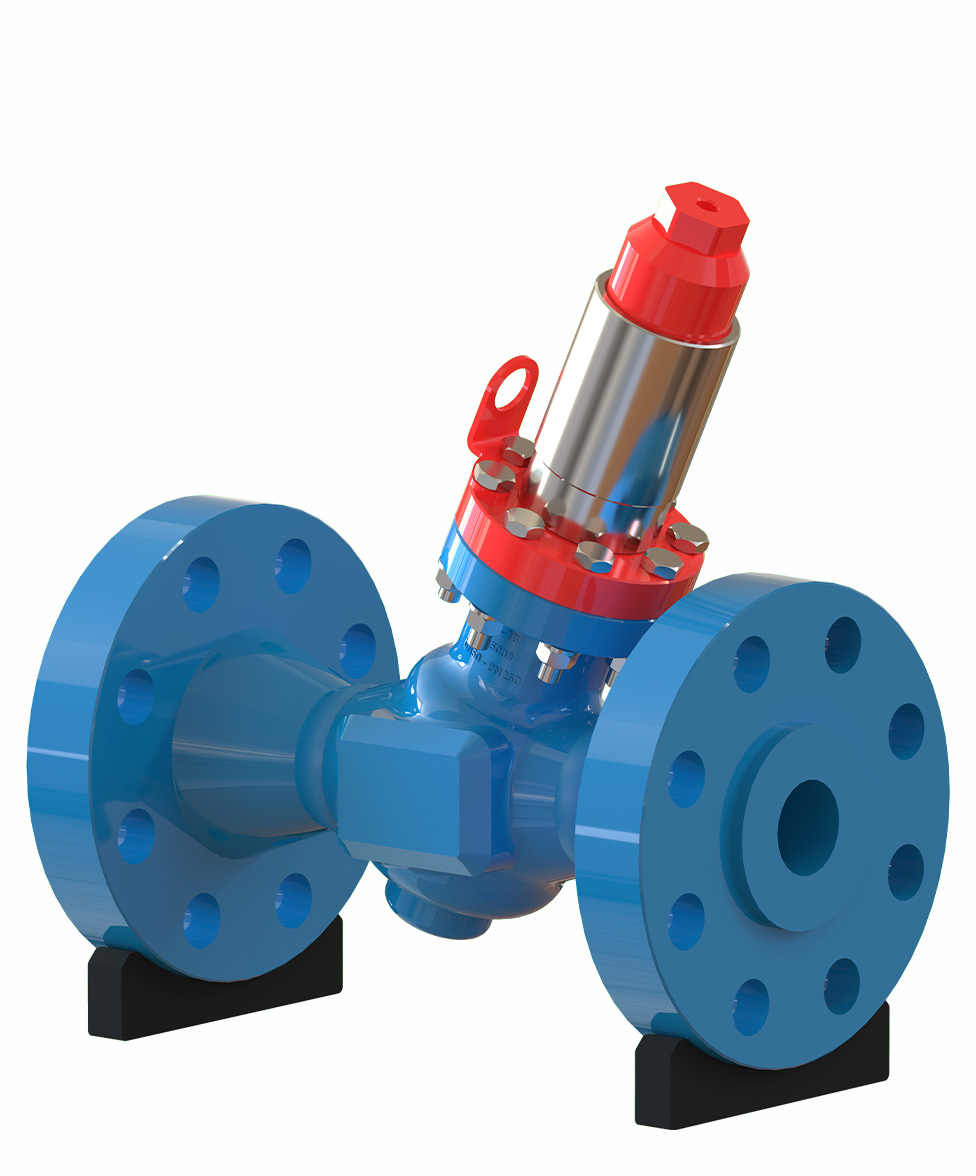

A surge relief valve is designed to open when an over pressure situation occurs and thereby prevent excessively high pressures from putting people and equipment at risk. The HYDROMINE™ LFC_1B spring acting surge relief valve has been developed to present a robust and simple solution to fluid handling issues in the mining sector and other industrial sectors.
SIMPLICITY
The HYDROMINE™ LFC_1B spring acting surge relief valve is designed to minimize wearing parts and in effect only has one moving part called the plug assembly. The plug assembly is a piston that is engineered to be unbalanced. The unbalanced plug assembly together with a spring are designed to use inline fluid pressure to create specific conditions in the system without the use of an external controller or pilot.
A fixed opening force can be established by fixing the surface area ratio exposed to the upstream pressure and the spring combined. Upstream pressure (Pu) would act to open the valve. As the Pu increases, the opening force increases proportionally causing the spring to compress and the valve to open. If Pu is reduced, the valve will close proportionally in an effort to maintain its hydraulic ratio and spring force combined.
The HYDROMINE™ LFC_1B spring acting surge relief valve relief pressure, can be adjusted within the spring range.

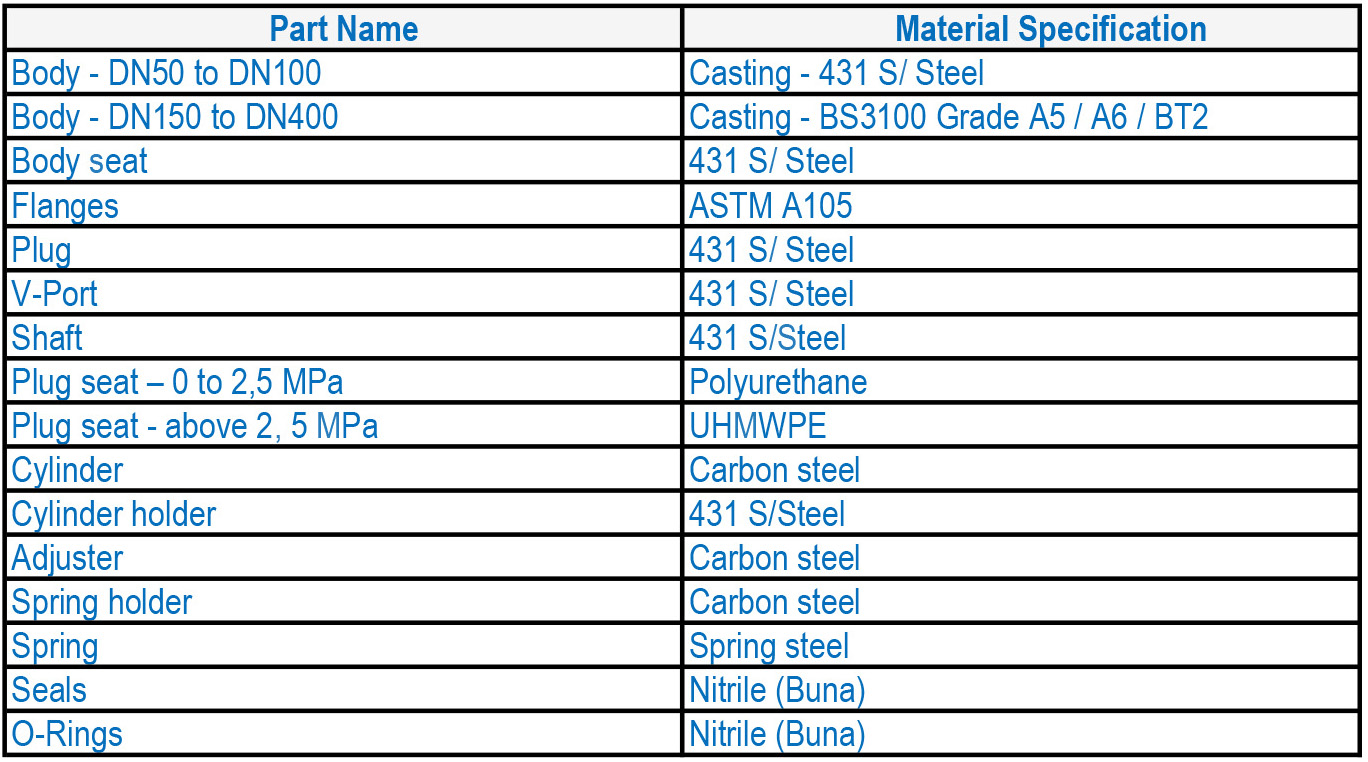

MATERIALS OF CONSTRUCTION
DIMENSIONS
FLOW RATES
VALVE SIZING
Please consult with HYDROMINE™ for clarification of correct sizing for your requirements.
LOW MAINTENANCE REQUIREMENT
All the moving parts of HYDROMINE™ LFC_1B Surge relief valve are manufactured from stainless steel which increases reliability and durability. The HYDROMINE™ LFC_1B requires minimal maintenance, the majority of which, can be conducted with the valve remaining in situ.
DESIGN AND MANUFACTURING STANDARDS
The HYDROMINE™ LFC_1B spring acting surge relief valve has been designed in accordance with various international standards as set out below:
ASME Boilers and pressure vessels design code
ANSI B16.10 API 598
ANSI B16.34 ANSI B16.37
ANSI Bl6.5 ANSI N278 .1
Available sizes: DN50 / 2" to DN400 / 16"
Face to face dimensions to ANSI B16.10
Pressure rating: up to 25MPa / 3 626 psi
Available end connections: ANSI Bl6.5, BS4504, BS10, AS/NZS 4331.1 (ISO 7005-1) DIN, All makes of grooved or ring joint couplings, HYDROMINE™ U-Coupling, HYDROMINE™ HMP_TE tapered couplings and other as per clients requirement.
